S&M Widemouth Pitchfork BMX Fork

S&M

  • $170
    Unit price per
Shipping calculated at checkout.

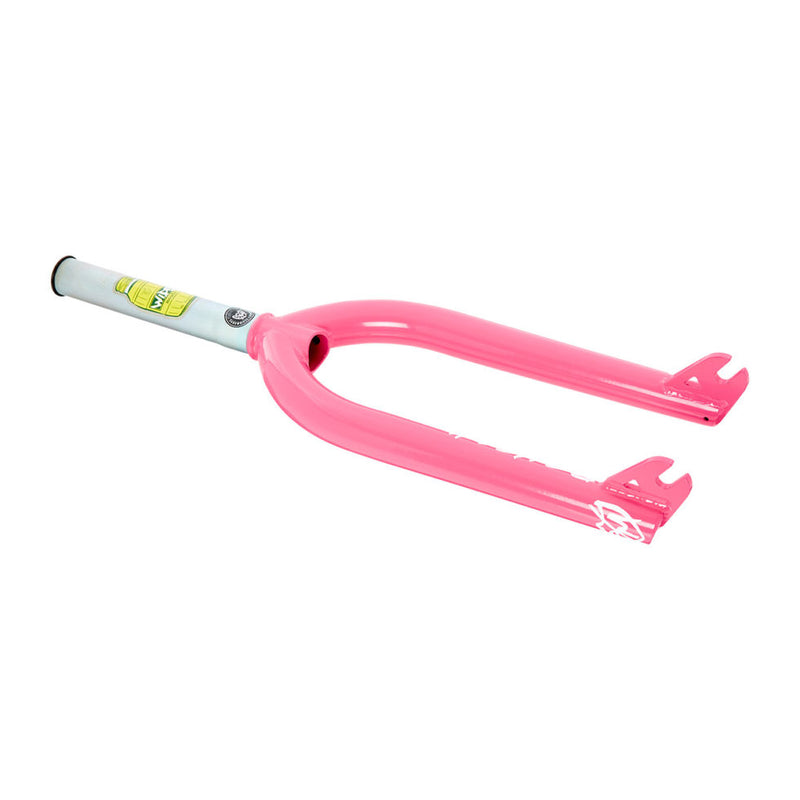

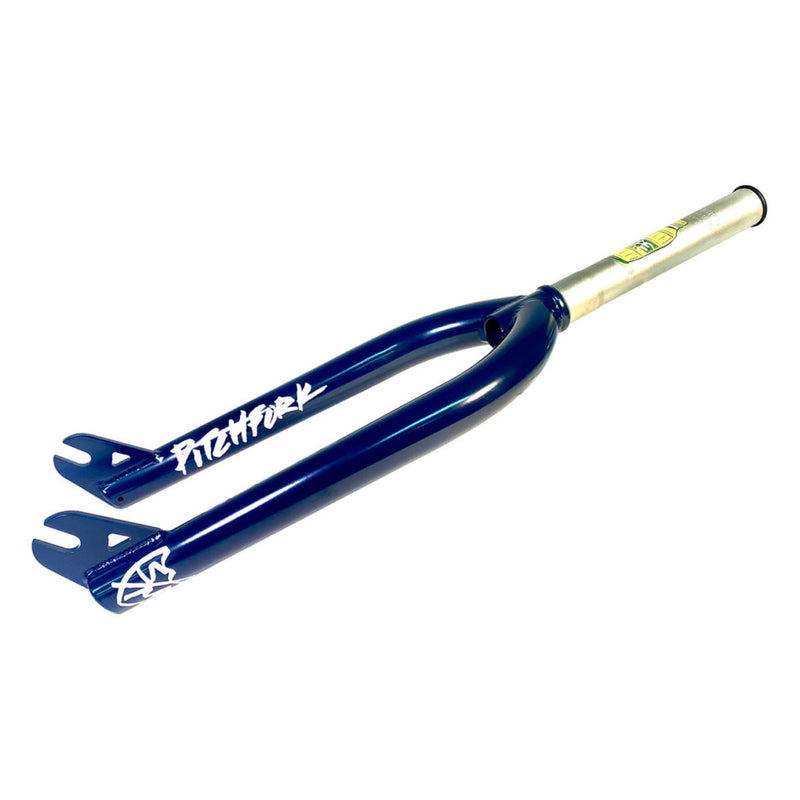

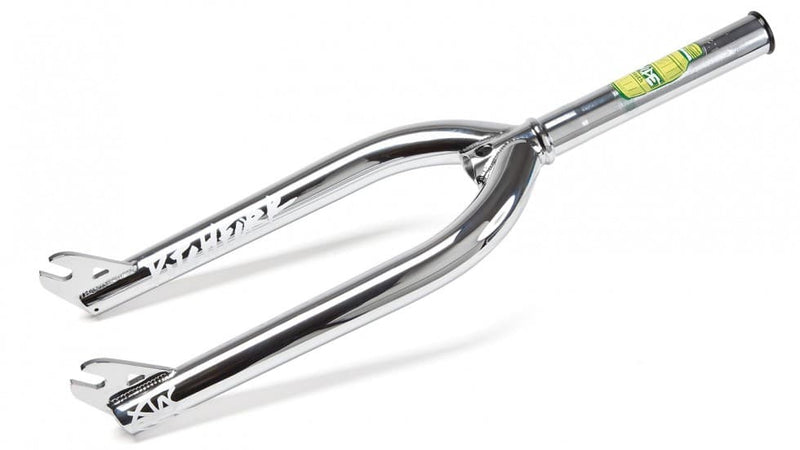

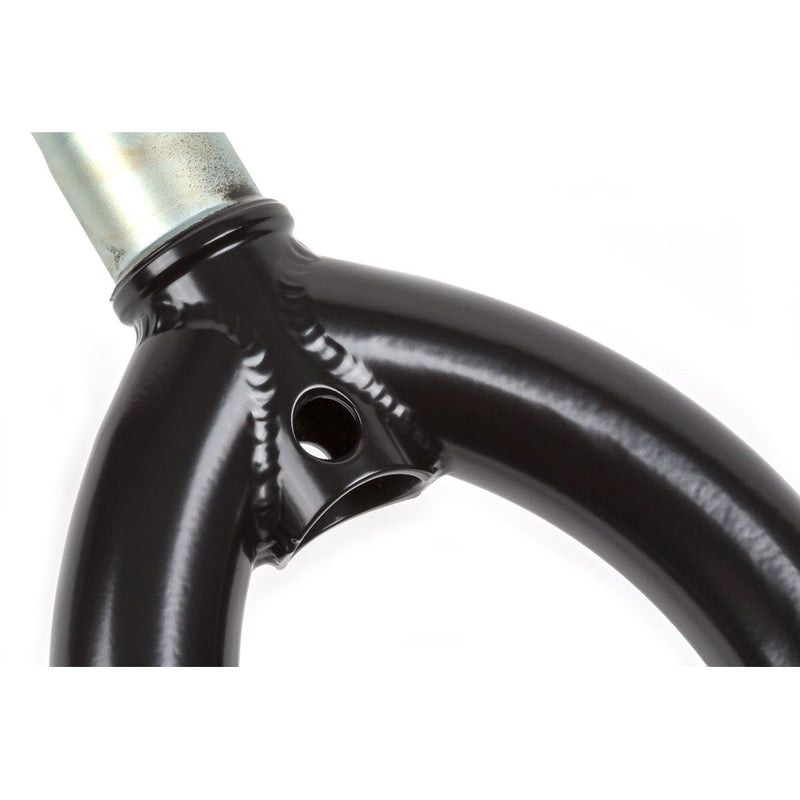

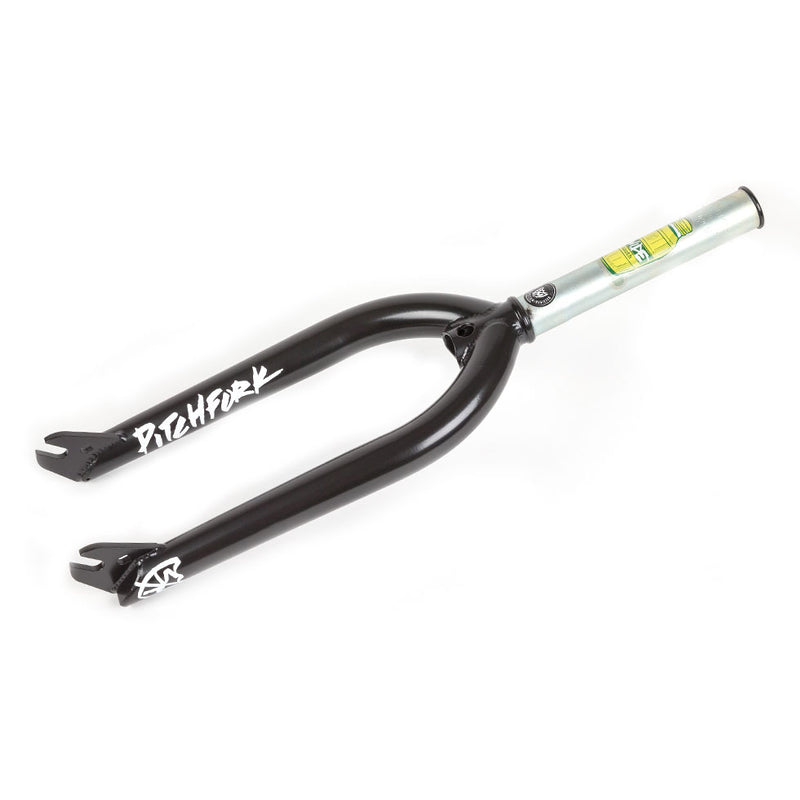

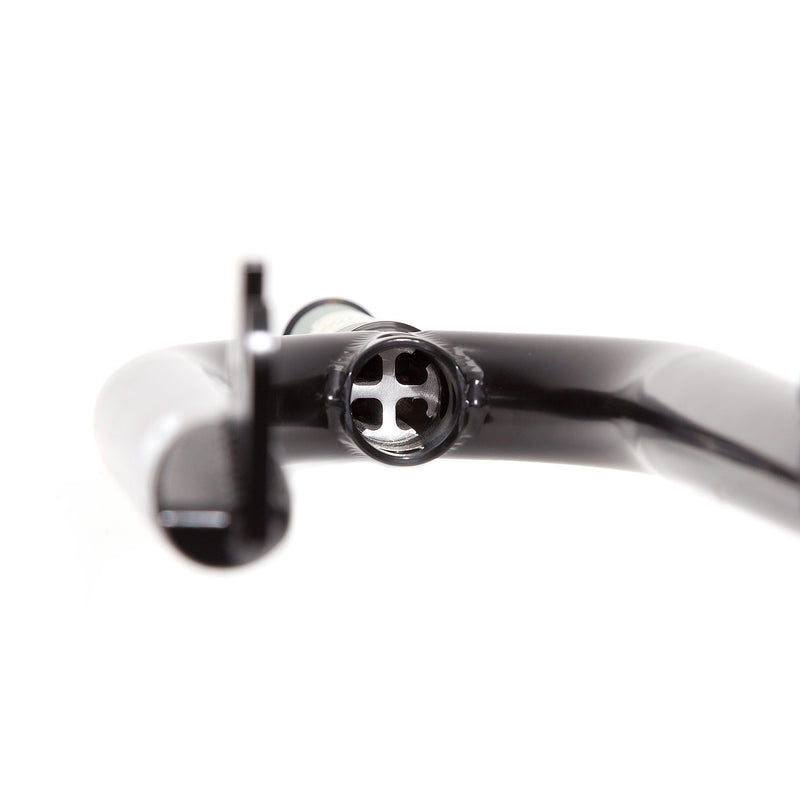

S&M Widemouth Pitchfork BMX Fork

The S&M Widemouth Pitchfork is the wide-clearance fork you need to run those beefy tires. Strong as always. Now in a black colorway.

Specs:

LEGS Double Butted, Tapered, 4130 CrMo

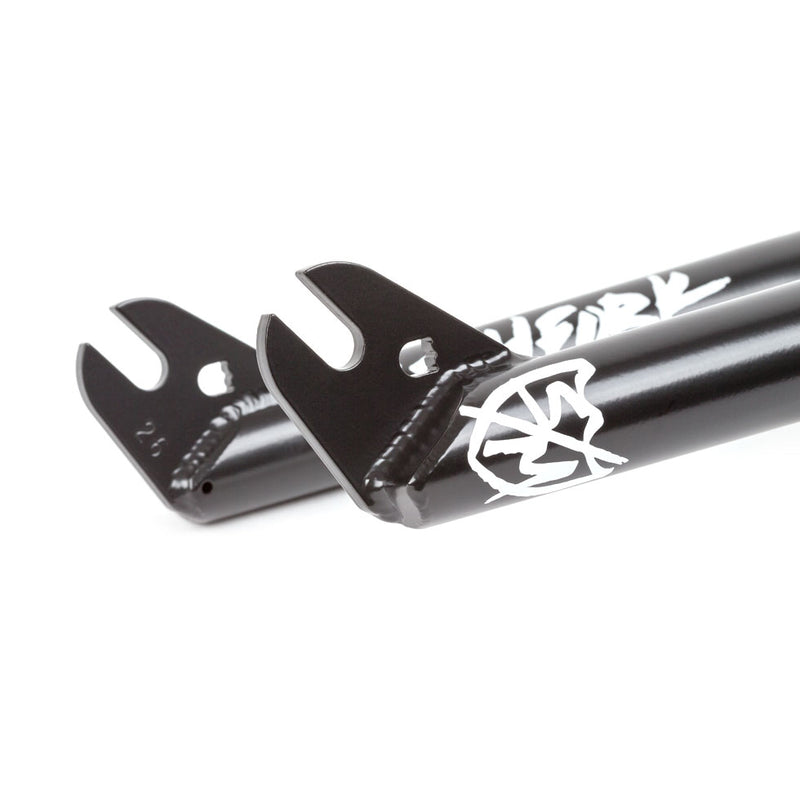

DROPOUTS Laser Cut 3/8″ Slot

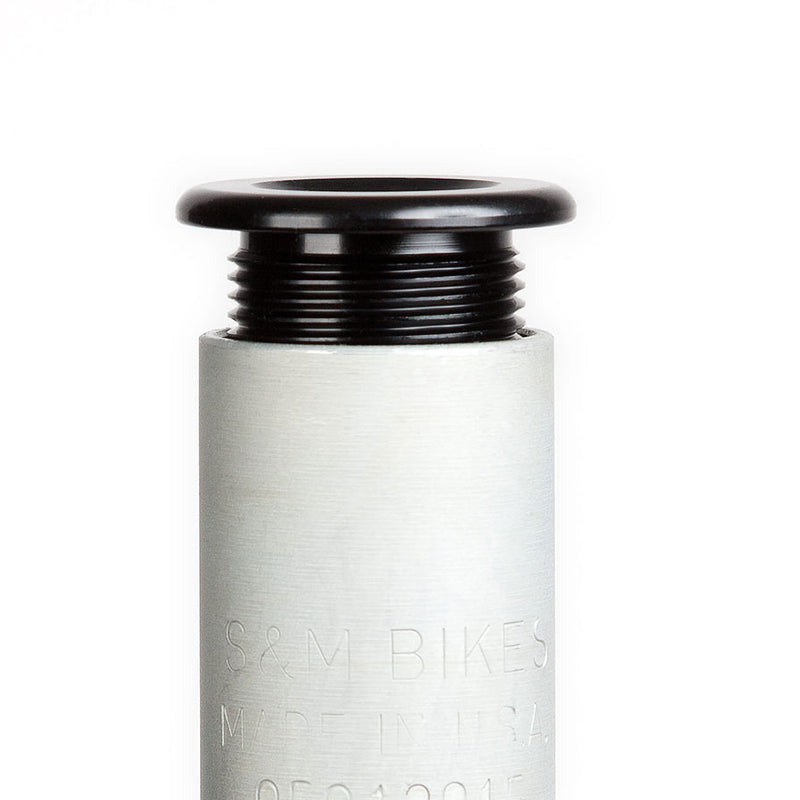

STEERER TUBE 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert
STEERER TUBE LENGTH 166mm
COMPRESSION M24 X 1.5 Thread – 6mm Allen Slot
AXLE TO CROWN HEIGHT 20″ – 320mm
22″ – 345.9mm
OFFSET 26mm
WEIGHT 1.99 lb (.90 kg) 20″
2.35 lb (1.06 kg) 22″
HEAT TREAT 4Q Baked Post-Weld
TIRE CLEARANCE                                       MAX CLEARANCE 2.45″
