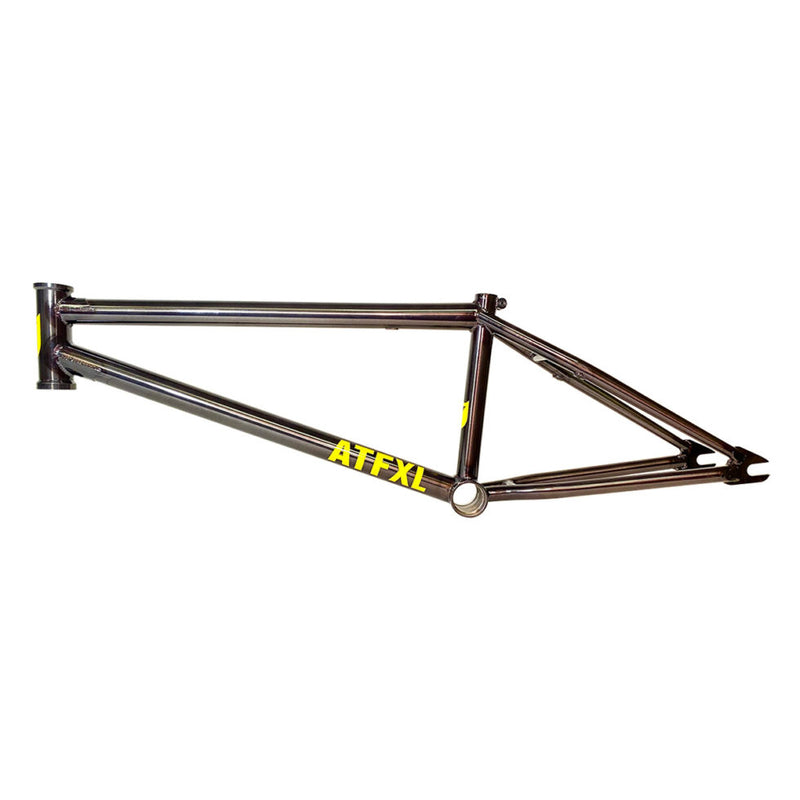

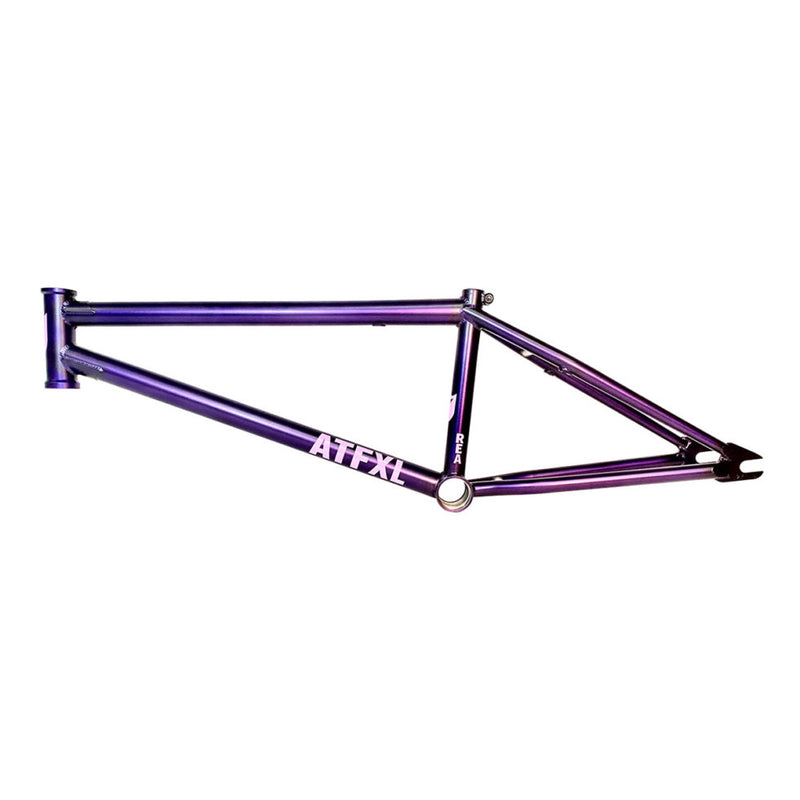

S&M ATF XL Frame

S&M

  • $520
    Unit price per
Shipping calculated at checkout.


21 & up. The ATF XL takes the tried & true ATF frame to the next level. With a taller 5″ head tube, 9″ standover and extended top tube sizes up to 22″, it’s built for the tall team. The perfect blend of responsiveness and stability, ready for action on all terrains.

TOP TUBE LENGTHS 21″, 21.25″,21.5″,22″
REAR END LENGTH 13.4″
HEAD TUBE ANGLE 75°
HEAD TUBE STYLE Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE 71°
SEAT CLAMP Integrated
SEAT POST SIZE 1″ (25.4mm)
BB HEIGHT 11.7″
BB STYLE Mid
STANDOVER HEIGHT 9″
BRAKE MOUNTS Thread-On 990 (Mounts sold separately)
DROPOUTS 14mm Slot, 4Q-Baked
GYRO TABS None
WEIGHT 4.75 lb (2.15 kg)
TUBESET Butted Thermal-X Tubing
